Eastern Bikes Javelin 2020 20" Complete Bike - Black/Camo #1
Eastern Bikes Javelin 2020 20" Complete Bike - Black/Camo #1
Eastern Bikes Javelin 2020 20" Complete Bike - Black/Camo #2
New

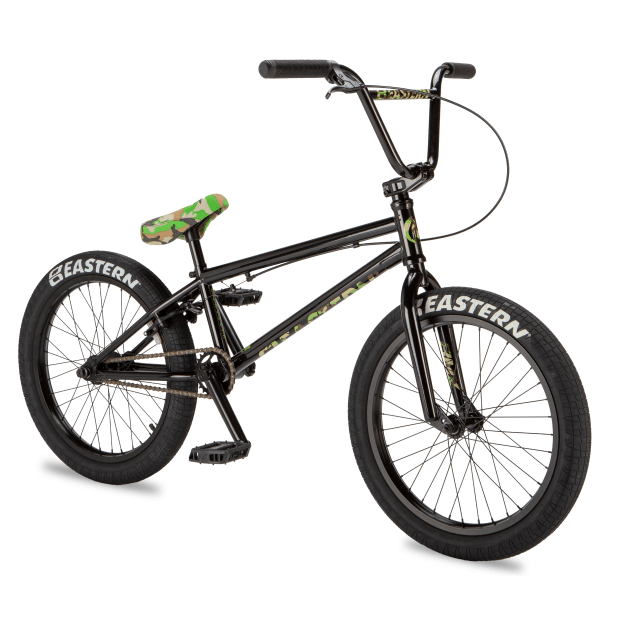

Eastern Bikes Javelin 2020 20" Complete Bike - Black/Camo

Ships within 4 weeks

6,825 Dream Miles
 or less
Gold Collectors use 10% fewer Miles
Onyx® Collectors use 20% fewer Miles
Description
Model: EB-182666
The Eastern Javelin is a beginner’s bike with a little extra. The Javelin features a rugged steel frame w/ chromo down tube, Double Wall Rims sealed front and rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.
Specifications

FRAME

  • Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
  • Top Tube Size: 20.5″
  • BB: Mid
  • Headtube: Integrated
  • Chainstay Length: 13.38″
  • Clamp: Integrated with Frame

BARS

  • Hi-Ten 8.5"
  • Upsweep/Backsweep 12⁰/1⁰
  • FORK
  • Hi-tensile steel Tapered legs, 3/8" dropouts
  • Fork Rake: 28mm



  • HEADSET Integrated 45°X45° Sealed Cartridge Bearing
  • STEM Forged Alloy Top Load Stem
  • GRIP Eastern Riblet Grips
  • CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
  • BOTTOM BRACKET Sealed Bearing Mid
  • CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
  • CHAIN KMC Z510 1/2 x 1/8
  • PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
  • FRONT BRAKE N/A
  • FRONT LEVER N/A
  • REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
  • REAR LEVER Forged Alloy Lever
  • BRAKE CABLE [S] LINEAR
  • SADDLE Medium Width Seat/ Post Combo
  • POST Comes with seat
  • FRONT HUB Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
  • REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
  • FREEWHEEL 9 Tooth Driver with Hub
  • FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes
  • REAR RIM Alloy, Double Wall, Drilled for 36 Spokes
  • SPOKES 14 Gauge with Brass Nipples
  • FRONT TIRE Eastern OEM 20 x 2.40
  • REAR TIRE Eastern OEM 20 x 2.40
  • PEG none
